FT5CNDPK20.0-T1压控温补晶体振荡器具有低抖动高精度特点

2022-08-22 16:37:17 锦玉电子

FOX晶振该公司是锻造工艺突破方面的先驱,并因此而闻名,这一技术改变了频率控制行业的面貌,所生产研发的产品为购买者和设计人员带来了全新水平的交付灵活性,缩短了提前期并降低了成本.尤其是在生产石英晶体振荡器方面的技术上面更是做到了精湛,

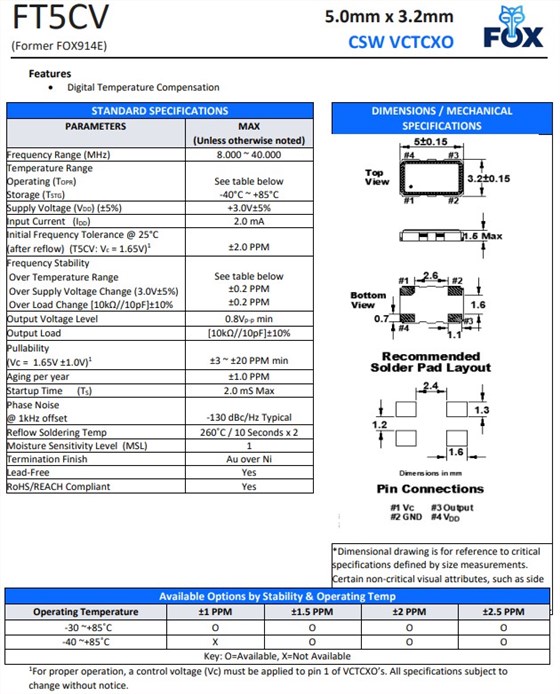

FT5CV系列,编码FT5CNDPK20.0-T1,压控温补晶体振荡器,小体积尺寸5.0x3.2mm,自带温度补偿功能的温补晶振系列产品,该系列产品具备超小型,轻薄型,高精度,低抖动,低电源电压等特点,完全不会折损最高的电气性能水平.

FT5CNDPK20.0-T1压控温补晶体振荡器具有低抖动高精度特点

Manufacturer Part Number原厂代码 Manufacturer
品牌
Series
型号
Type
类型
Frequency
频率
Voltage-Supply
电压
Package/Case
包装/封装
FOX924B-12.000 Fox Crystal FOX924 TCXO 12MHz 3.3V 4-SMD, No Lead
FOX924B-12.000 Fox Crystal FOX924 TCXO 12MHz 3.3V 4-SMD, No Lead
FOX924B-12.000 Fox Crystal FOX924 TCXO 12MHz 3.3V 4-SMD, No Lead
FOX924B-16.000 Fox Crystal FOX924 TCXO 16MHz 3.3V 4-SMD, No Lead
FOX924B-16.000

Fox Crystal

FOX924 TCXO 16MHz 3.3V 4-SMD, No Lead
FOX924B-16.000 Fox Crystal FOX924 TCXO 16MHz 3.3V 4-SMD, No Lead
FOX924B-20.000 Fox Crystal FOX924 TCXO 20MHz 3.3V 4-SMD, No Lead
FOX924B-20.000 Fox Crystal FOX924 TCXO 20MHz 3.3V 4-SMD, No Lead
FOX924B-20.000 Fox Crystal FOX924 TCXO 20MHz 3.3V 4-SMD, No Lead
FOX924B-27.000 Fox Crystal FOX924 TCXO 27MHz 3.3V 4-SMD, No Lead
FOX924B-27.000 Fox Crystal FOX924 TCXO 27MHz 3.3V 4-SMD, No Lead
FOX924B-27.000 Fox Crystal FOX924 TCXO 27MHz 3.3V 4-SMD, No Lead
FOX924B-10.000 Fox Crystal FOX924 TCXO 10MHz 3.3V 4-SMD, No Lead
FOX924B-10.000 Fox Crystal FOX924 TCXO 10MHz 3.3V 4-SMD, No Lead
FOX924B-10.000 Fox Crystal FOX924 TCXO 10MHz 3.3V 4-SMD, No Lead
FOX924B-14.7456 Fox Crystal FOX924 TCXO 14.7456MHz 3.3V 4-SMD, No Lead
FOX924B-14.7456 Fox Crystal FOX924 TCXO 14.7456MHz 3.3V 4-SMD, No Lead

2

3

FOX924B-14.7456 Fox Crystal FOX924 TCXO 14.7456MHz 3.3V 4-SMD, No Lead
FOX924B-25.000 Fox Crystal FOX924 TCXO 25MHz 3.3V 4-SMD, No Lead
FOX924B-25.000 Fox Crystal FOX924 TCXO 25MHz 3.3V 4-SMD, No Lead
FOX924B-25.000 Fox Crystal FOX924 TCXO 25MHz 3.3V 4-SMD, No Lead
FOX924B-12.288 Fox Crystal FOX924 TCXO 12.288MHz 3.3V 4-SMD, No Lead
FOX924B-12.288 Fox Crystal FOX924 TCXO 12.288MHz 3.3V 4-SMD, No Lead
FOX924B-12.288 Fox Crystal FOX924 TCXO 12.288MHz 3.3V 4-SMD, No Lead
FOX924B-19.440 Fox Crystal FOX924 TCXO 19.44MHz 3.3V 4-SMD, No Lead
FOX924B-19.440 Fox Crystal FOX924 TCXO 19.44MHz 3.3V 4-SMD, No Lead
FOX924B-19.440 Fox Crystal FOX924 TCXO 19.44MHz 3.3V 4-SMD, No Lead
FOX914B-20.000 Fox Crystal FOX914 TCXO 20MHz 3V 4-SMD, No Lead
FOX914B-20.000 Fox Crystal FOX914 TCXO 20MHz 3V 4-SMD, No Lead
FOX914B-20.000 Fox Crystal FOX914 TCXO 20MHz 3V 4-SMD, No Lead
FOX914B-12.800 Fox Crystal FOX914 TCXO 12.8MHz 3V 4-SMD, No Lead
FOX914B-12.800 Fox Crystal FOX914 TCXO 12.8MHz 3V 4-SMD, No Lead
FOX914B-12.800 Fox Crystal FOX914 TCXO 12.8MHz 3V 4-SMD, No Lead
FOX914B-19.200 Fox Crystal FOX914 TCXO 19.2MHz 3V 4-SMD, No Lead
FOX914B-19.440 Fox Crystal FOX914 TCXO 19.44MHz 3V 4-SMD, No Lead
FOX914B-26.000 Fox Crystal FOX914 TCXO 26MHz 3V 4-SMD, No Lead
840C-12-1 Fox Crystal FOX922 VCTCXO 12MHz 3.3V 6-SMD, No Lead

FT5CNDPK20.0-T1压控温补晶体振荡器具有低抖动高精度特点

压控温补振荡器简称为VCTCXO,压控晶振(VCXO)是通过调整控制端电压改变输出频率。一般频率调整范围为±50~±200ppm。改变外加调整电压的大小,能改变容性负载CL的值,从而实现频率的调整。
温补晶振(TCXO)是利用附件的温度补偿电路以减少环境温度对振荡频率的影响。TCXO利用热敏电阻的温度敏感性,当温度变化时,热敏电阻的阻值和容性负载同时发生变化,而容性负载的变化会改变振荡频率,从而实现的对振荡频率的修正。TCXO频率精度和温度特性远高于普通振荡器,比恒温晶振差,但不需预热,功耗低,从而在野外作业,移动设备,通讯导航设备中广泛应用。
