HC49U,AAK20M000000FLH18A,20MHz,STD通孔石英晶振，美国进口晶振，STD晶振，型号：HC49U系列，编码为：AAK20M000000FLH18A，频率：20.000MHz，精度：±30ppm，频率稳定性：±50ppm，工作温度范围：-20℃至+70℃，负载电容：18pF，小体积晶振尺寸：11.0x4.8x13.5mm，椭圆形插件晶振，通孔石英晶振，无源晶振，石英晶振，石英晶体谐振器。应用于：智能家居晶振，数码电子晶振，高清电视机晶振，无线蓝牙晶振，通讯设备晶振等。
HC49U,AAK20M000000FLH18A,20MHz,STD通孔石英晶振,参数表
Frequency Range
20.00MHz
Frequency Tolerance
± 50PPM ( Standard )
Frequency Stability
± 100PPM ( Standard )
Operating Temperature Range
0℃to 70℃ ( Standard )
Load Capacitance ( CL)
12pF to 50pF & Series
Shunt Capacitance
7pF Maximum
Drive Lavel
1mWatt Maximum
Aging
±5 PPM per year Maximum

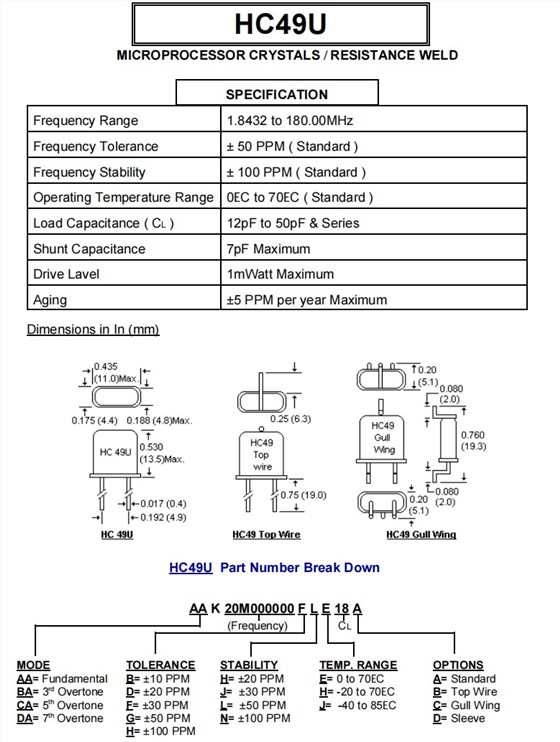

HC49U,AAK20M000000FLH18A,20MHz,STD通孔石英晶振,尺寸图
