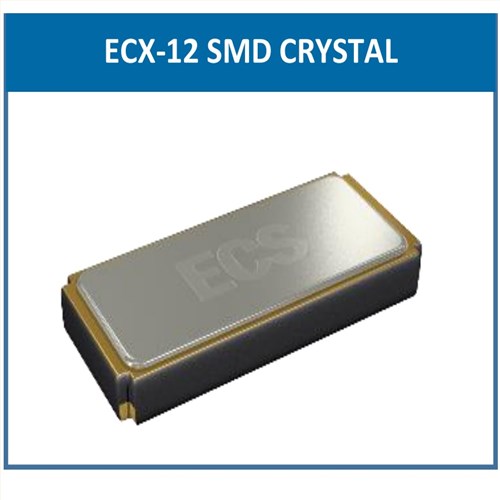

2012mm,ECS-.327-6-12-TR,32.768kHz,ECX-12,ECS数字显示晶振，美国进口晶振，ECS伊西斯晶振，型号：ECX-12，编码为：ECS-.327-6-12-TR,，频率：32.768K晶振，负载：6pF，精度：±20ppm，小体积晶振尺寸：2.0x1.2x0.6mm，是一个非常紧凑的SMD调叉晶体，两脚贴片晶振，石英晶体谐振器，石英晶振，2012晶振，无源晶振，SMD时钟晶体，工作温度范围：-40℃至+85℃。具有超小型晶振，轻薄型晶振，高品质晶振，高性能晶振，耐热及耐环境等特点。被广泛应用于：智能穿戴设备晶振，钟表电子，电脑主板，数字显示，移动设备晶振、物联网晶振、实时时钟和工业应用。
2012mm,ECS-.327-6-12-TR,32.768kHz,ECX-12,ECS数字显示晶振,参数表
| PARAMETERS | CONDITIONS | ECX-12 | UNITS | ||
| MIN | TYP | MAX | |||
| Frequency | 32.768 | KHz | |||
| Frequency Tolerance | @ +25°C | ± 20 * | ppm | ||
| Load Capacitance | Specify in P/N | 12.5 | pF | ||
| Drive Level | DL | 0.1 | 0.5 | μW | |
| Equivalent Series Resistance | R1 | 90K | Ω | ||
| Motional Capacitance | 7.0 | fF | |||
| Turnover Temperature | +20 | +25 | +30 | °C | |
| Temperature Coefficient | -0.02 | -0.03 | -0.040 | ppm/°C² | |
| Shunt Capacitance | Co | 1.3 | pF | ||
| Aging (First Year) | @ +25°C ±3°C | ±3 | ppm | ||
| Operating Temperature | Topr | -40 | +85 | °C | |
| Storage Temperature | Tstg | -55 | +125 | °C | |
2012mm,ECS-.327-6-12-TR,32.768kHz,ECX-12,ECS数字显示晶振,尺寸图
| 原厂编码 | 厂家 | 型号 | 千赫兹晶振 | 工作温度 |
| ECS-.327-12.5-34B-TR | ECS晶振 | ECX-31B | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-17X-TR | ECS晶振 | ECX-306X | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-13X | ECS晶振 | ECS-2X6X | 32.768kHz | -10°C ~ 60°C |
| ECS-.327-12.5-38-TR | ECS晶振 | ECX-71 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-7-34B-TR | ECS晶振 | ECX-31B | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-17X-TR | ECS晶振 | ECX-306X | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-17X-C-TR | ECS晶振 | ECX-306X | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-CDX-1128 | ECS晶振 | ECS-CDX | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-7-38-TR | ECS晶振 | ECX-71 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-13FLX-C | ECS晶振 | ECS-2x6-FLX | 32.768kHz | -40°C ~ 85°C |
| ECS-3X8X | ECS晶振 | ECS-3X8X | 32.768kHz | -10°C ~ 60°C |
| ECS-.327-12.5-13 | ECS晶振 | ECS-2x6 | 32.768kHz | -10°C ~ 60°C |
| ECS-3X8 | ECS晶振 | ECS-3X8 | 32.768kHz | -10°C ~ 60°C |
| ECS-.327-12.5-34B-C-TR | ECS晶振 | ECX-31B | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-9-34B-TR | ECS晶振 | ECX-31B | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-39-TR | ECS晶振 | ECX-39 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-34QCS-TR | ECS晶振 | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-7-34B-C-TR | ECS晶振 | ECX-31B | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-9-34B-C-TR | ECS晶振 | ECX-31B | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-12-TR | ECS晶振 | ECX-12 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-7-12-TR | ECS晶振 | ECX-12 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-12-TR | ECS晶振 | ECX-12 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-17-TR | ECS晶振 | ECX-306 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-16-TR | ECS晶振 | ECX-16 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-34S-TR | ECS晶振 | ECX-34S | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-12.5-34S-TR | 石英晶振 | ECX-34S | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-6-13FLX-TR | ECS晶振 | ECS-2x6-FLX | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-17X-C-TR | ECS晶振 | ECX-306X | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-7-34QS-TR | ECS晶振 | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-9-34QS-TR | ECS晶振 | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-12.5-34QS-TR | ECS晶振 | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-6-34QS-TR | ECS晶振 | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-9-34R-TR | ECS晶振 | ECX-34R | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-34R-TR | ECS晶振 | ECX-34R | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-9-34QCS-TR | ECS晶振 | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-7-34QCS-TR | ECS晶振 | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-12.5-34R-C-TR | ECS晶振 | ECX-34R | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-34QCS-TR | ECS晶振 | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-9-12-TR | ECS晶振 | ECX-12 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-CDX-1074 | ECS晶振 | ECX-12 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-CDX-1082 | ECS晶振 | CDX-1082 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-17-TR | ECS晶振 | ECX-306 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-9-16-TR | ECS晶振 | ECX-16 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-8-14X | ECS晶振 | ECS-1x5X | 32.768kHz | -10°C ~ 60°C |
| ECS-.327-12.5-12L-TR | ECS晶振 | ECX-12L | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-34G-TR | ECS晶振 | ECX-34G | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-34G-TR | ECS晶振 | ECX-34G | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-CDX-1038 | ECS晶振 | ECS-2X6X | 32.768kHz | -10°C ~ 60°C |
| ECS-.327-7-34R-TR | ECS晶振 | ECX-34R | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-8-14 | ECS晶振 | ECS-1x5 | 32.768kHz | -10°C ~ 60°C |
| ECS-.327-6-13X | ECS晶振 | ECS-2X6X | 32.768kHz | -10°C ~ 60°C |
| ECS-.327-CDX-1293 | ECS晶振 | ECS-CDX | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-34RR-TR | ECS晶振 | ECX-34RR | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-9-34RR-TR | ECS晶振 | ECX-34RR | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-34RR-TR | ECS晶振 | ECX-34RR | 32.768kHz | -40°C ~ 85°C |
