QCM45-21AFT18-32.000MHz,QVS品牌,6035mm,32MHz

产品简介

QCM45-21AFT18-32.000MHz,QVS品牌,6035mm,32MHz，美国进口晶振，QVS晶振，型号：QCM45，编码为：QCM45-21AFT18-32.000MHz，频率稳定性：±50ppm，工作温度范围：0℃至+70℃，频率为：32.000MHz，负载：18pF，小体积晶振尺寸：6.0x3.5mm封装，四脚贴片晶振，无源晶振，石英晶振，SMD石英晶体，6035晶振，石英晶体谐振器，无铅环保晶振。具有超小型，轻薄型，高精度，高性能，高可靠性等特点。应用于：通讯设备晶振，网络设备晶振，无线蓝牙晶振，数码电子晶振，汽车电子晶振，安防设备晶振，智能家居等应用。

产品详情

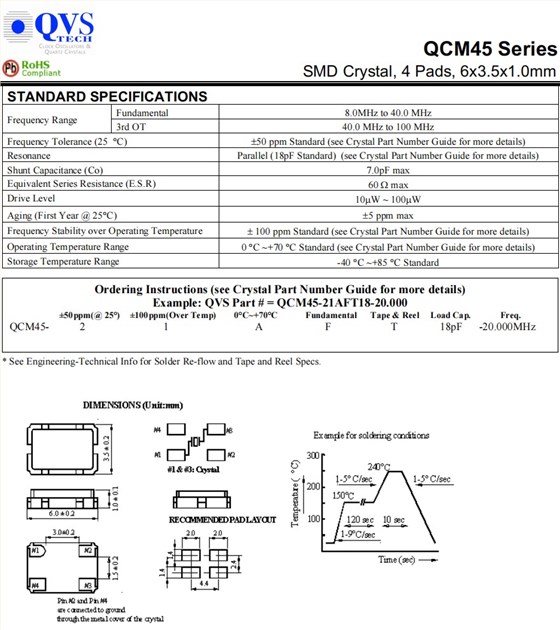

QCM45-21AFT18-32.000MHz,QVS品牌,6035mm,32MHz,参数表

Frequency Range	Fundamental	32.000 MHz
	3rd OT	40.0 MHz to 100 MHz
Frequency Tolerance (25℃)		± 50 ppm Standard (see Crystal Part Number Guide for more details)
Resonance		Parallel (18pF Standard) (see Crystal Part Number Guide for more details)
Shunt Capacitance (Co)		7.0pF max
Equivalent Series Resistance (E.S.R)		60 W max
Drive Level		10µW ~ 100µW
Aging (First Year @ 25℃)		±5 ppm max
Frequency Stability over Operating Temperature		±100 ppm Standard (see Crystal Part Number Guide for more details)
Operating Temperature Range		0℃ ~+70℃ Standard (see Crystal Part Number Guide for more details)
Storage Temperature Range		-40℃ ~+85℃ Standard
