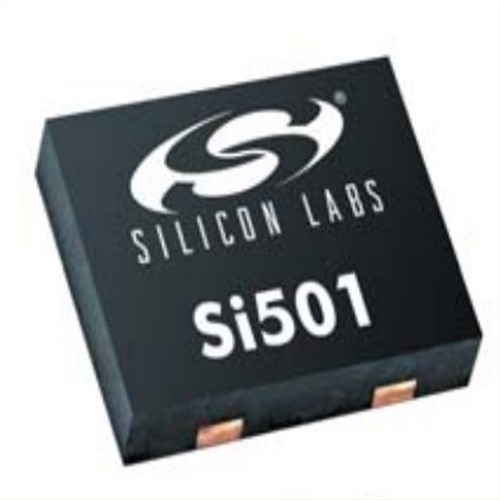

Si501,501JCA25M0000CAF,25MHz,3225mm,Silicon晶振，美国进口晶振，Silicon晶振，型号：Si501，编码为：501JCA25M0000CAF，频率为：25MHz，小体积晶振尺寸：3.2x2.5mm封装，四脚贴片晶振，有源晶振，SMD晶振，石英晶振，石英晶体振荡器。具有超小型，轻薄型，高精度，高性能，高品质等特点。应用于：存储（SATA/SAS/PCIe），通用处理器，工业控制器，嵌入式控制器，机控制，流量控制，办公室/家庭自动化，IP摄像头/监控，显示和控制面板，户外电子设备，多功能打印机等。

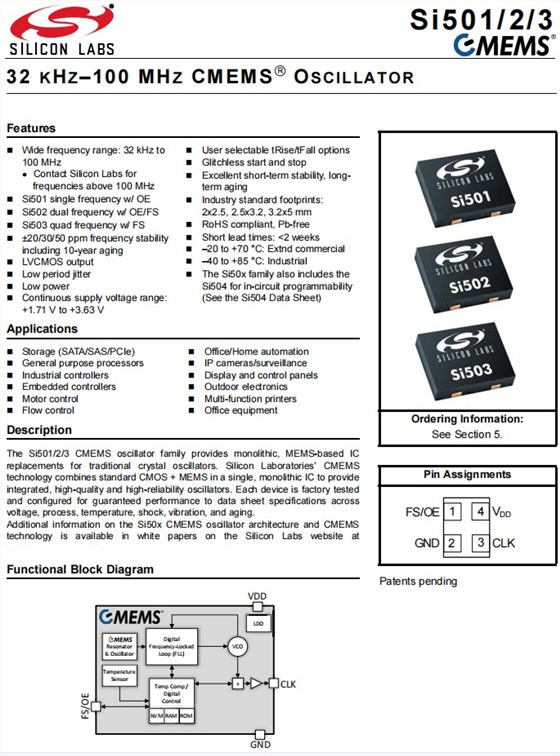

Si501 CMEMS振荡器系列为传统的晶体振荡器提供了单片的，基于mems的IC替代品。石英晶振，硅实验室的CMEMS技术将标准CMOS+MEMS结合在一个单片IC集成电路中，提供集成、高质量和高可靠性的振荡器。每个设备都经过工厂测试和配置，以保证其在电压、工艺、温度、冲击、振动和老化等方面的性能。

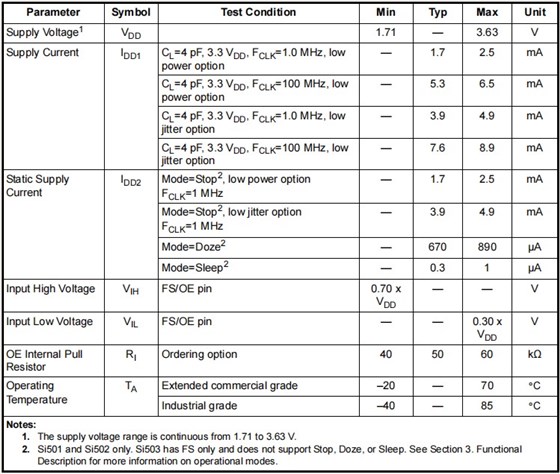

Si501,501JCA25M0000CAF,25MHz,3225mm,Silicon晶振,参数表

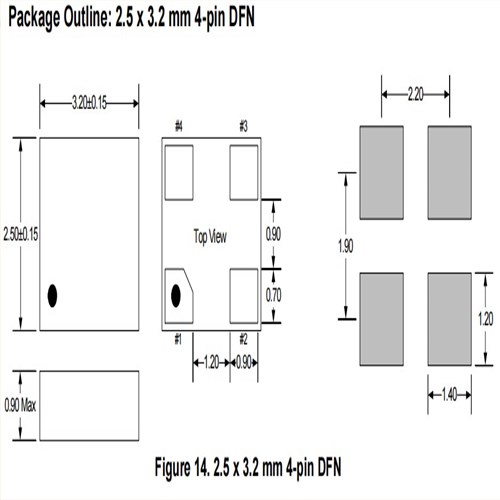

Si501,501JCA25M0000CAF,25MHz,3225mm,Silicon晶振,尺寸图
Si501,501JCA25M0000CAF,25MHz,3225mm,Silicon晶振
产品特点：
宽频率范围：32kHz到100MHz
Si501单频w/OE
Si502双频w/OE/FS
Si503四频w/FS
±20/30/50 ppm频率稳定性，包括10年老化
LVCMOS输出石英晶体振荡器
低周期抖动
低功率
连续供电电压范围：+1.71V至+3.63V
用户可选择的上升/下降选项
无故障启动和停止
无故障启动和停止
优异的短期稳定性，长期老化
行业标准占地面积：2x2.5mm、2.5x3.2mm、3.2x5mm
符合RoHS，不含铅
交付周期短：<2周
–20至+70°C：外部商用
-40至+85°C：工业
| 原厂代码 | 进口晶振 | 型号 | 频率 | 电压 | 频率稳定度 | 包装/封装 |
| 501JCA100M000CAG | Silicon晶振 | Si501 | 100MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCAM032768DAG | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCAM032768DAG | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JAA24M0000DAF | Silicon晶振 | Si501 | 24MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA16M0000DAF | Silicon晶振 | Si501 | 16MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA24M0000CAF | Silicon晶振 | Si501 | 24MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA40M0000CAF | Silicon晶振 | Si501 | 40MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JCA24M0000DAF | Silicon晶振 | Si501 | 24MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA24M0000CAF | Silicon晶振 | Si501 | 24MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCA16M0000CAF | Silicon晶振 | Si501 | 16MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BAA16M0000CAG | Silicon晶振 | Si501 | 16MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JCA25M0000CAF | Silicon晶振 | Si501 | 25MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA20M0000CAG | Silicon晶振 | Si501 | 20MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCA16M0000CAG | Silicon晶振 | Si501 | 16MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA100M000DAF | Silicon晶振 | Si501 | 100MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA100M000CAF | Silicon晶振 | Si501 | 100MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCAM032768DAF | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCAM032768CAF | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCAM032768CAF | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCAM032768CAG | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCAM032768DAF | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCAM032768CAG | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA10M0000CAF | Silicon晶振 | Si501 | 10MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA10M0000CAG | Silicon晶振 | Si501 | 10MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA10M0000DAF | Silicon晶振 | Si501 | 10MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA10M0000DAG | Silicon晶振 | Si501 | 10MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCA16M0000DAF | 贴片晶振 | Si501 | 16MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCA16M0000DAG | Silicon晶振 | Si501 | 16MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BAA16M0000CAF | Silicon晶振 | Si501 | 16MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA16M0000DAG | Silicon晶振 | Si501 | 16MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JCA20M0000CAF | Silicon晶振 | Si501 | 20MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA20M0000DAF | Silicon晶振 | Si501 | 20MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA20M0000DAG | Silicon晶振 | Si501 | 20MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JAA24M0000CAG | Silicon晶振 | Si501 | 24MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA24M0000DAG | Silicon晶振 | Si501 | 24MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JCA24M0000CAG | Silicon晶振 | Si501 | 24MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA24M0000DAG | Silicon晶振 | Si501 | 24MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JAA25M0000CAF | Silicon晶振 | Si501 | 25MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA25M0000CAG | Silicon晶振 | Si501 | 25MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA25M0000DAF | Silicon晶振 | Si501 | 25MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA25M0000DAG | Silicon晶振 | Si501 | 25MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JCA25M0000CAG | Silicon晶振 | Si501 | 25MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA25M0000DAF | Silicon晶振 | Si501 | 25MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA25M0000DAG | Silicon晶振 | Si501 | 25MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JAA40M0000CAG | Silicon晶振 | Si501 | 40MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA40M0000DAF | Silicon晶振 | Si501 | 40MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA40M0000DAG | Silicon晶振 | Si501 | 40MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA50M0000CAF | Silicon晶振 | Si501 | 50MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA50M0000CAG | Silicon晶振 | Si501 | 50MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA50M0000DAF | Silicon晶振 | Si501 | 50MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA50M0000DAG | Silicon晶振 | Si501 | 50MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JCA100M000DAG | Silicon晶振 | Si501 | 100MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCAM032768CAFR | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCAM032768CAGR | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCAM032768DAFR | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCAM032768DAGR | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCAM032768CAFR | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCAM032768CAGR | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCAM032768DAFR | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCAM032768DAGR | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA10M0000CAFR | Silicon晶振 | Si501 | 10MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA10M0000CAGR | Silicon晶振 | Si501 | 10MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA10M0000DAFR | Silicon晶振 | Si501 | 10MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA10M0000DAGR | Silicon晶振 | Si501 | 10MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCA16M0000CAFR | Silicon晶振 | Si501 | 16MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCA16M0000CAGR | Silicon晶振 | Si501 | 16MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCA16M0000DAFR | Silicon晶振 | Si501 | 16MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BCA16M0000DAGR | Silicon晶振 | Si501 | 16MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501BAA16M0000CAFR | Silicon晶振 | Si501 | 16MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA16M0000CAGR | Silicon晶振 | Si501 | 16MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA16M0000DAFR | Silicon晶振 | Si501 | 16MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA16M0000DAGR | Silicon晶振 | Si501 | 16MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JCA20M0000CAFR | Silicon晶振 | Si501 | 20MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA20M0000CAGR | Silicon晶振 | Si501 | 20MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA20M0000DAFR | Silicon晶振 | Si501 | 20MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA20M0000DAGR | Silicon晶振 | Si501 | 20MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JAA24M0000CAFR | Silicon晶振 | Si501 | 24MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA24M0000CAGR | Silicon晶振 | Si501 | 24MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA24M0000DAFR | Silicon晶振 | Si501 | 24MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA24M0000DAGR | Silicon晶振 | Si501 | 24MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JCA24M0000CAFR | Silicon晶振 | Si501 | 24MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA24M0000CAGR | Silicon晶振 | Si501 | 24MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA24M0000DAFR | Silicon晶振 | Si501 | 24MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA24M0000DAGR | Silicon晶振 | Si501 | 24MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JAA25M0000CAFR | Silicon晶振 | Si501 | 25MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA25M0000CAGR | Silicon晶振 | Si501 | 25MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA25M0000DAFR | Silicon晶振 | Si501 | 25MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA25M0000DAGR | Silicon晶振 | Si501 | 25MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JCA25M0000CAFR | Silicon晶振 | Si501 | 25MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA25M0000CAGR | Silicon晶振 | Si501 | 25MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA25M0000DAFR | Silicon晶振 | Si501 | 25MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA25M0000DAGR | Silicon晶振 | Si501 | 25MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JAA40M0000CAFR | Silicon晶振 | Si501 | 40MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA40M0000CAGR | Silicon晶振 | Si501 | 40MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA40M0000DAFR | Silicon晶振 | Si501 | 40MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA40M0000DAGR | Silicon晶振 | Si501 | 40MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA50M0000CAFR | Silicon晶振 | Si501 | 50MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA50M0000CAGR | Silicon晶振 | Si501 | 50MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA50M0000DAFR | Silicon晶振 | Si501 | 50MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA50M0000DAGR | Silicon晶振 | Si501 | 50MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JCA100M000CAFR | Silicon晶振 | Si501 | 100MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA100M000CAGR | Silicon晶振 | Si501 | 100MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA100M000DAFR | Silicon晶振 | Si501 | 100MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA100M000DAGR | Silicon晶振 | Si501 | 100MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
