Crystek石英贴片晶振,CSX1-BH3-20-75.000MHz,无线应用晶振，美国进口晶振，CRYSTEK瑞斯克晶振，型号：CSX1系列晶振，编码为：CSX1-BH3-20-75.000MHz，频率：75.000MHz，小体积晶振尺寸：7.0x5.0mm，四脚贴片晶振，石英晶体谐振器，石英晶振，无源晶振，水晶振动子，SMD晶振，无铅晶振，具有超小型，轻薄型，高精度，高性能，高品质，高质量，耐热及耐环境特点。贴片晶振，被广泛应用于：汽车电子，物联网，通讯设备，无线应用，蓝牙模块，智能手机，平板电脑，网络，安防设备，医疗设备，数码电子，智能家居等。
Crystek石英贴片晶振,CSX1-BH3-20-75.000MHz,无线应用晶振,参数表
Frequency Range:
8.000 MHz to 50.000 MHz (Fund)
40.000 MHz to 100.000 MHz (3rdOT)
Calibration Tolerance:
±10ppm to ±50ppm
Frequency Stability:
±15ppm to ±100ppm
Operating Temp. Ranges:
0°C to 70°C
-20°C to 70°C
-40°C to 85°C
Storage Temp. Range:
-40°C to 85°C
Resistance:
See Table 1
Shunt Cap:
5pF Max
Holder Type:
5×7mm SMD
Aging:
±3ppm/1styear Max
Drive level:
50uW Typical, 300uW Max
Motional Capacitance:
Not Specified
Spurious Response:
Not Specified
C0/C1 Ratio:
Not Specified
Pullability:
Not Specified
Trim Sensitivity:
Not Specified
Temp. Coefficient:
Not Specified

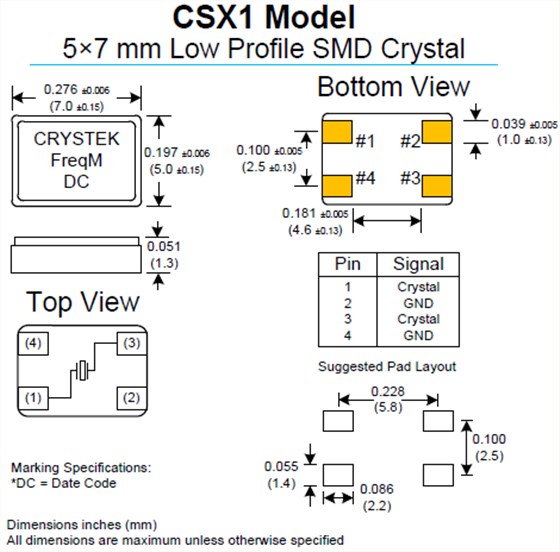

Crystek石英贴片晶振,CSX1-BH3-20-75.000MHz,无线应用晶振,尺寸图

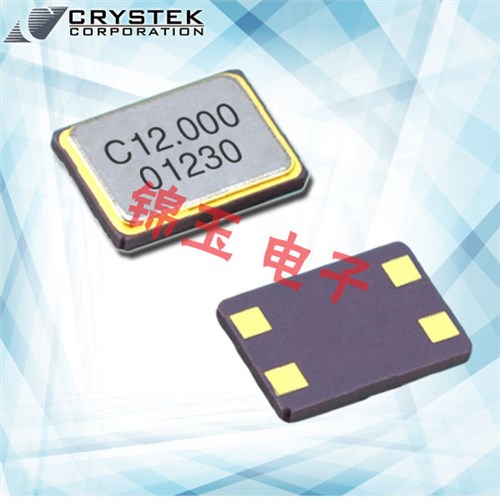

Crystek石英贴片晶振,CSX1-BH3-20-75.000MHz,无线应用晶振
小型石英贴片晶振主要采用了，先进的晶片的抛光工艺技术，是晶体行业中石英晶片研磨技术中表面处理的最高技术，最终使晶片表面更光洁，平行度及平面度更好，大大的降低谐振电阻，使精度得到了很大的提升。改变了传统的生产工艺，使产品在各项参数得到了很大的改良,外观尺寸具有薄型表面贴片型石英晶体谐振器,特别适用于有小型化要求的市场领域,比如智能手机,无线蓝牙,平板电脑等电子数码产品。
