24.576MHz/NX2520SA-24.576000MHZ/±10ppm/2520mm/平板电脑晶振，日本电波工业株式NDK晶振，进口晶振型号NX2520SA，编码NX2520SA-24.576000MHZ，是一款小体积晶振尺寸2.5x2.0x0.50mm四脚贴片晶振，石英晶振，无源晶振，石英晶体谐振器，无铅环保晶振，频率为：24.576MHz，具有超小型，轻薄型，优异的耐环境性能，耐热和耐冲击性，回流温度曲线（可用于无铅焊接)，应用于：电信设备，蓝牙石英晶振，短程无线设备，消费电子产品，短程无线设备、Wi-Fi，以及参考时钟源如智能手机和平板电脑等应用。

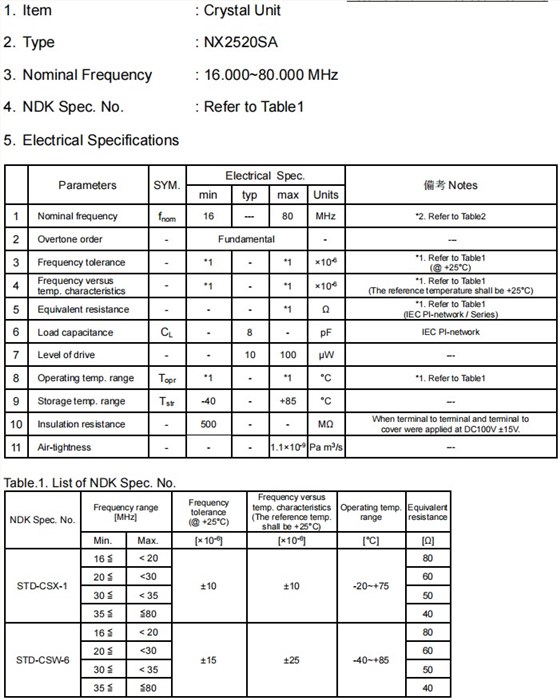

24.576MHz/NX2520SA-24.576000MHZ/±10ppm/2520mm/平板电脑晶振，参数表
Item
Model
NX2520SA
Standard
Standard
Optional
Nominal Frequency (MHz)
16 ≤ F ≤ 80
16 ≤ F ≤ 54
16 ≤ F ≤ 80
Overtone Order
Fundamental
Frequency Tolerance
±15 × 10−6
±10 × 10–6
(25 ±3 °C)
Frequency versus Temperature
±25 × 10−6
±10 × 10–6
±10 × 10–6
Characteristics
(Temp extended case, *1)
(with reference to +25 °C)
Operating Temperature
−40 to +85
–20 to +75
–20 to +75
Range(°C)
(–40 to +85 °C Extended)
Storage Temperature Range (°C)
−40 to +85
−40 to +125
Equivalent Series Resistance
Refer to *2
Refer to *3
Refer to *2
Level of Drive (μW)
10 (Max. 100)
10 (Max. 200) *1
Load Capacitance (pF)
8
6 to 32
Frequency Aging (+25 °C)
---
Max. ±3×10-6 / year *1
Specifications Number
STD-CSW-6
STD-CSX-1
Refer to *4

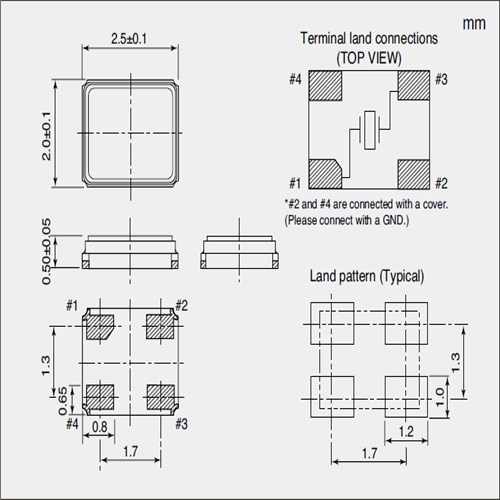

24.576MHz/NX2520SA-24.576000MHZ/±10ppm/2520mm/平板电脑晶振，尺寸图
| 2520无源贴片晶振 | 品牌 | 型号 | 频率 | 频率稳定度 | 包装/封装 |
| NX2520SA-16MHZ-STD-CSW-4 | NDK晶振 | NX2520SA | 16MHz | ±15ppm | 4-SMD, No Lead |
| NX2520SA-16.000000MHZ | NDK晶振 | NX2520SA | 16MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-24.000000MHZ | NDK晶振 | NX2520SA | 24MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-24.000000MHZ-B8 | NDK晶振 | NX2520SA | 24MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-48.000000MHZ | NDK晶振 | NX2520SA | 48MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-16MHZ-EXS00A-CS05116 | NDK晶振 | NX2520SA | 16MHz | ±15ppm | 4-SMD, No Lead |
| NX2520SA-25.000M-STD-CSW-5 | NDK晶振 | NX2520SA | 25MHz | ±25ppm | 4-SMD, No Lead |
| NX2520SA-26MHZ-STD-CSX-1 | NDK晶振 | NX2520SA | 26MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-26.000000MHZ | NDK晶振 | NX2520SA | 26MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-30.000000MHZ | NDK晶振 | NX2520SA | 30MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-24.576000MHZ | NDK晶振 | NX2520SA | 24.576MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-20.000000MHZ | NDK晶振 | NX2520SA | 20MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-32.000000MHZ | NDK晶振 | NX2520SA | 32MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-44.000000MHZ | NDK晶振 | NX2520SA | 44MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-26.000000MHZ-B9 | NDK晶振 | NX2520SA | 26MHz | ±10ppm | 4-SMD, No Lead |
| EXS00A-CS05400 | NDK晶振 | NX2520SA | 19.2MHz | ±30ppm | 4-SMD, No Lead |
| NX2520SA-16MHZ-STD-CSW-5 | NDK晶振 | NX2520SA | 16MHz | ±25ppm | 4-SMD, No Lead |
| NX2520SA-16.000000MHZ-W1 | NDK晶振 | NX2520SA | 16MHz | ±20ppm | 4-SMD, No Lead |
| NX2520SA-40.000000MHZ | NDK晶振 | NX2520SA | 40MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-40.000000MHZ-W2 | NDK晶振 | NX2520SA | 40MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-40.000000MHZ-W3 | NDK晶振 | NX2520SA | 40MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-26MHZ-EXS00A-CS05497 | NDK晶振 | NX2520SA | 26MHz | ±10ppm | 4-SMD, No Lead |

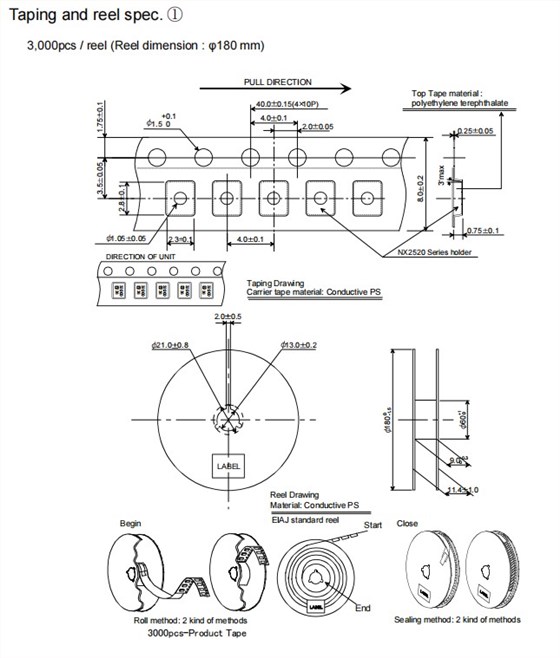

24.576MHz/NX2520SA-24.576000MHZ/±10ppm/2520mm/平板电脑晶振，胶带和卷轴规格
24.576MHz/NX2520SA-24.576000MHZ/±10ppm/2520mm/平板电脑晶振
安装条件：
请确保在以下条件下使用该产品。否则，可能会导致产品的特性恶化或破坏。

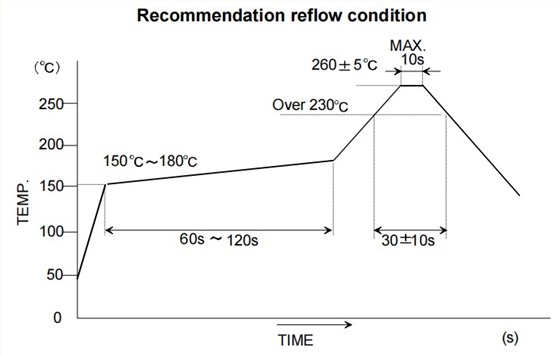

(1)回流焊耐热峰值温度：265℃, 10sec，加热：230℃或更高，40秒，预热：150~180℃，120秒，回流通道次数：2次
(2)手动焊接耐热性将400°C的焊铁压在终端电极上4秒（两次）
