ECS正方型钟振,ECS-2200BX-160,无线网络6G应用晶振
频率：16.000MHz
尺寸：13.20mm x 13.20mm
ECS正方型钟振,ECS-2200BX-160,无线网络6G应用晶振，美国进口晶振，ECS伊西斯晶振型号ECS-2200X系列，编码为：ECS-2200BX-160，频率为：16.000MHz，尺寸为：13.20mm x 13.20mm，8 PIN倾斜时钟振荡器，OSC晶振，石英晶振，插件晶振，石英晶体振荡器，ECS-2200X系列时钟振荡器可以同时驱动HCMOS和TTL逻辑。这个振荡器还具有在一个8针DIP包中的三针态启用/禁用功能。50pF HCMOS/TTL逻辑，三态启用/禁用，频率范围广，电阻焊包，电源电压3.3V操作（可选），无铅/符合RoHS。应用于通讯设备，网络设备晶振，蓝牙模块，物联网，车载电子，医疗设备，安防设备，GPS定位系统，数码电子等应用。

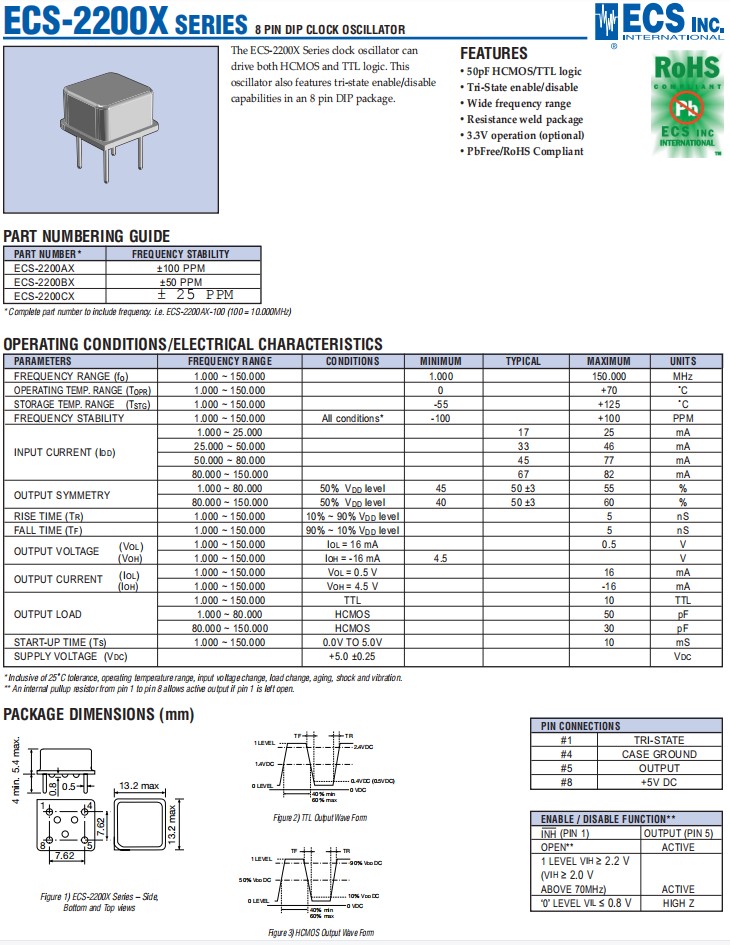

ECS正方型钟振,ECS-2200BX-160,无线网络6G应用晶振，参数表
PARAMETERS
FREQUENCY RANGE
CONDITIONS
MINIMUM
TYPICAL
MAXIMUM
UNITS
FREQUENCY RANGE (fo)
1.000 ~ 150.000
26
MHz
OPERATING TEMP. RANGE (TOPR)
1.000 ~ 150.000
0
+70
℃
STORAGE TEMP. RANGE (TSTG)
1.000 ~ 150.000
--55
+125
℃
FREQUENCY STABILITY
1.000 ~ 150.000
All conditions*
- 100
+100
PPM
INPUT CURRENT (IDD )
1.000 ~ 25.000
17
25
mA
25.000 ~ 50.000
33
46
mA
50.000 ~ 80.000
45
77
mA
80.000 ~ 150.000
67
82
mA
OUTPUT SYMMETRY
1.000 ~ 80.000
50% VDD level
45
50 ±3
55
%
80.000 ~ 150.000
50% VDD level
40
50 ±3
60
%
RISE TIME (TR )
1.000 ~ 150.000
10% ~ 90% VDD level
5
nS
FALL TIME (TF )
1.000 ~ 150.000
90% ~ 10% VDD level
5
nS
OUTPUT VOLTAGE
(VOL )
(VOH )
1.000 ~ 150.000
IOL = 16 mA
0.5
V
1.000 ~ 150.000
IOH = - 16 mA
4.5
V
OUTPUT CURRENT
(IOL )
(IOH )
1.000 ~ 150.000
VOL = 0.5 V
16
mA
1.000 ~ 150.000
VOH = 4.5 V
- 16
mA
OUTPUT LOAD
1.000 ~ 150.000
TTL
10
TTL
1.000 ~ 80.000
HCMOS
50
pF
80.000 ~ 150.000
HCMOS
30
pF
START-UP TIME (TS )
1.000 ~ 150.000
0 .0V TO 5 .0V
10
mS
SUPPLY VOLTAGE (VDC )
+5 .0 ±0 .25
VDC

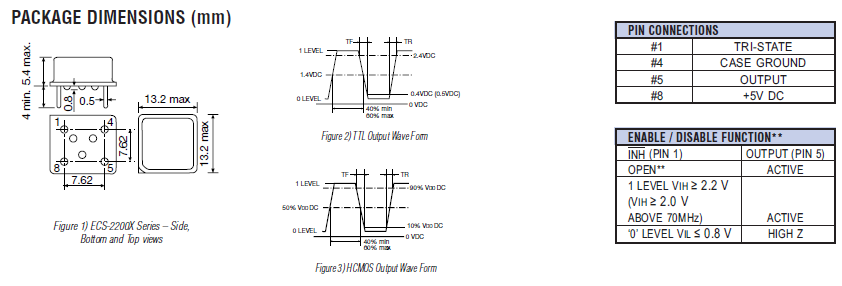

ECS正方型钟振,ECS-2200BX-160,无线网络6G应用晶振，尺寸图
ECS正方型钟振,ECS-2200BX-160,无线网络6G应用晶振
特征：
50pF HCMOS/TTL逻辑 石英晶体振荡器
•三态启用/禁用
•频率范围广
•电阻焊包
•3.3V操作（可选）
•无铅/符合RoHS
ECS-2200X系列时钟振荡器可以同时驱动HCMOS和TTL逻辑。这个振荡器还具有在一个8针DIP包中的三针态启用/禁用功能。
| 有源晶振 | 品牌 | 型号 | 频率 | 工作温度 | Size / Dimension 尺寸 |
| ECS-2200BX-200 | ECS晶振 | ECS-2200X | 20MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200BX-080 | ECS晶振 | ECS-2200X | 8MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200BX-400 | ECS晶振 | ECS-2200X | 40MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-200 | ECS晶振 | ECS-2200 | 20MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-110.5 | ECS晶振 | ECS-2200 | 11.0592MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200BX-160 | ECS晶振 | ECS-2200X | 16MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-120 | ECS晶振 | ECS-2200 | 12MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200BX-800 | ECS晶振 | ECS-2200X | 80MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-480 | ECS晶振 | ECS-2200 | 48MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-400 | ECS晶振 | ECS-2200 | 40MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200BX-100 | ECS晶振 | ECS-2200X | 10MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200BX-060 | ECS晶振 | ECS-2200X | 6MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200BX-040 | ECS晶振 | ECS-2200X | 4MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-100 | ECS晶振 | ECS-2200 | 10MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-800 | ECS晶振 | ECS-2200 | 80MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-250 | ECS晶振 | ECS-2200 | 25MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200BX-240 | ECS晶振 | ECS-2200X | 24MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200BX-098 | ECS晶振 | ECS-2200X | 9.8304MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-196 | 进口晶振 | ECS-2200 | 19.6608MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-098 | ECS晶振 | ECS-2200 | 9.8304MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200BX-110.5 | ECS晶振 | ECS-2200X | 11.0592MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200BX-320 | ECS晶振 | ECS-2200X | 32MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-184 | ECS晶振 | ECS-2200 | 18.432MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-073 | ECS晶振 | ECS-2200 | 7.3728MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200BX-480 | ECS晶振 | ECS-2200X | 48MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-040 | ECS晶振 | ECS-2200 | 4MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-080 | ECS晶振 | ECS-2200 | 8MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200BX-500 | ECS晶振 | ECS-2200X | 50MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200BX-073 | ECS晶振 | ECS-2200X | 7.3728MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200BX-196 | ECS晶振 | ECS-2200X | 19.6608MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-240 | ECS晶振 | ECS-2200 | 24MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200BX-049 | ECS晶振 | ECS-2200X | 4.9152MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-666 | ECS晶振 | ECS-2200 | 66.666MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-500 | ECS晶振 | ECS-2200 | 50MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-049 | ECS晶振 | ECS-2200 | 4.9152MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-060 | ECS晶振 | ECS-2200 | 6MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-061 | ECS晶振 | ECS-2200 | 6.144MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-092.1 | ECS晶振 | ECS-2200 | 9.216MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-143 | ECS晶振 | ECS-2200 | 14.31818MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-160 | ECS晶振 | ECS-2200 | 16MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-283 | ECS晶振 | ECS-2200 | 28.322MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| ECS-2200B-320 | ECS晶振 | ECS-2200 | 32MHz | 0°C ~ 70°C | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
