HSB221S,TC2S026000DCCHE-T,26MHz,2520mm,HELE物联网晶振

频率：26.000MHz

尺寸：2.5x2.0mm

HSB221S,TC2S026000DCCHE-T,26MHz,2520mm,HELE物联网晶振，台湾HELE晶振，加高晶振，型号：HSB221S，编码为：TC2S026000DCCHE-T，频率为：26.000MHz，电压：2.8V，频率稳定性：±50ppm，工作温度范围：-30℃至+85℃，小体积晶振尺寸：2.5x2.0mm封装，四脚贴片晶振，TCXO温补晶振，温补晶体振荡器，石英晶振，石英晶体振荡器，SMD晶振，有源晶振，无铅环保晶振。具有超小型，轻薄型，高精度，高性能，高品质，低抖动晶振，低功耗晶振，低相位噪声，低电源电压等特点。被广泛应用于：移动通讯设备，车载电子晶振，无线网络晶振，物联网晶振，导航仪晶振，智能家居等应用。

订购热线：0755-29952090

锦玉-8

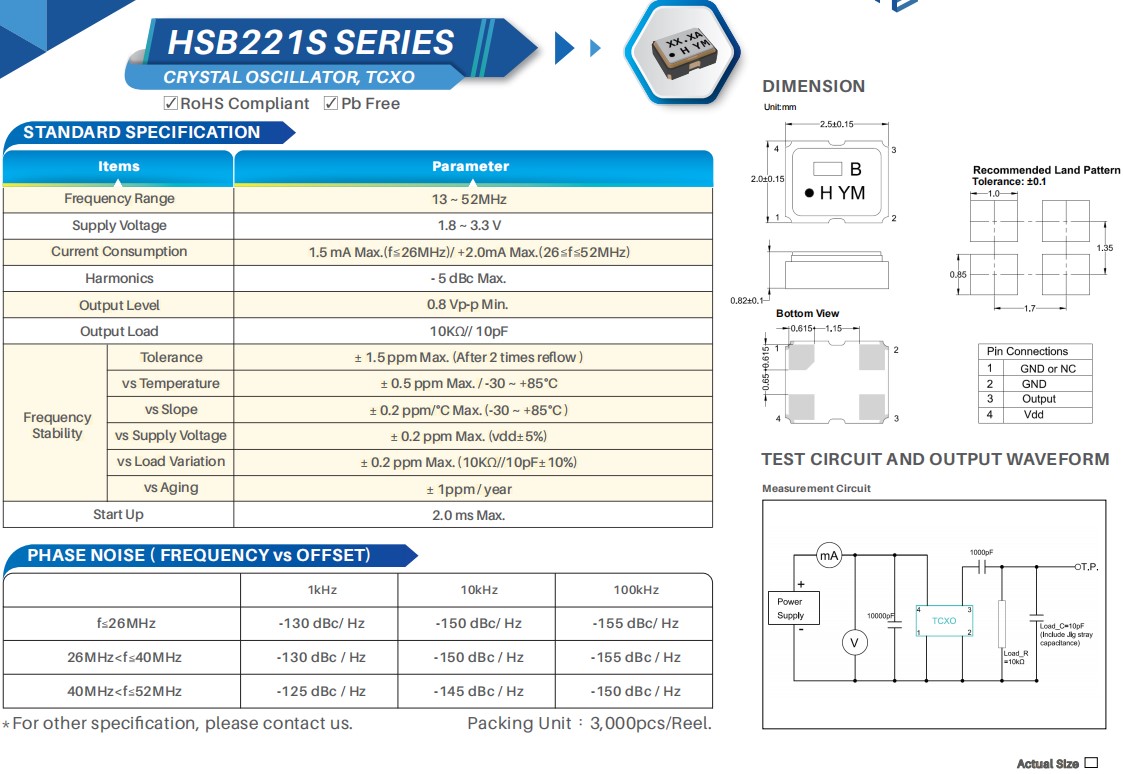

HSB221S,TC2S026000DCCHE-T,26MHz,2520mm,HELE物联网晶振,参数表

HSB221S,TC2S026000DCCHE-T,26MHz,2520mm,HELE物联网晶振,尺寸图

编码	加高晶振	型号	频率	电压	频率稳定性
SSW048000I3CHE-T	HELE加高	HSO321S	48 MHz	3.3V	±50ppm
SSW050000I3CHE-T	HELE加高	HSO321S	50 MHz	3.3V	±50ppm
SSW008000I3CHE-T	HELE加高	HSO321S	8 MHz	3.3V	±50ppm
SSW024576F3CHC-T	HELE加高	HSO321S	24.576 MHz	3.3V	±30ppm
SSW010000I3CHE-T	HELE加高	HSO321S	10 MHz	3.3V	±50ppm
SSW025000I3CHE-ST7R2	HELE加高	HSO321S	25 MHz	3.3V	±50ppm
S2H048000F3CHC-T	HELE加高	HSO221S	48 MHz	3.3V	±30ppm
TC2S026000DCCHE-T	HELE加高	HSB221S	26 MHz	2.8V	±500ppb
S2H025000EECHB-ST0R5	HELE加高	HSO221S	25 MHz	1.8V	-
SSW025000I3CHE-T	HELE加高	HSO321S	25MHz	3V~3.6V	±50ppm
SSW32768KF3CHC-IT	HELE加高	HSO321S	32.768kHz	3V~3.6V	±30ppm
SSW022579E3CH	HELE加高	HSO321S	22.5792MHz	3V~3.6V	±25ppm
SSW048000F3CH	HELE加高	HSO321S	48MHz	3V~3.6V	±30ppm
SSW024000FECH	HELE加高	HSO321S	24MHz	1.71V	±20ppm
SSW033333I3CHE-T	HELE加高	HSO321S	33.333MHz	3V~3.6V	±50ppm
SSW024000I3CH	HELE加高	HSO321S	24MHz	3V~3.6V	±50ppm
S2H019200IECHE-T	HELE加高	HSO221S	19.2MHz	1.8V	-50ppm~+30ppm
S2H32768KF3CHC-IT	HELE加高	HSO221S	32.768kHz	3.3V	±30ppm
S2H022118F3CHC-T	HELE加高	HSO221S	22.1184MHz	3.3V	±30ppm
S2H008000I3CHE-T	有源晶振	HSO221S	8MHz	3.3V	±50ppm
SSW024000I3CHE-T	HELE加高	HSO321S	24MHz	3V~3.6V	±50ppm
S2H024576D3CHA-T	HELE加高	HSO221S	24.576MHz	3V~3.6V	±20ppm
SSW002048F3CHC-T	HELE加高	HSO321S	2.048MHz	3V~3.6V	±30ppm
SSW027000FECHC-T	HELE加高	HSO321S	27MHz	1.71V	±30ppm
S2H024000FECHC-T	HELE加高	HSO221S	24MHz	1.8V	±30ppm
SSW32768KF3CH-I	HELE加高	HSO321S	32.768kHz	3V~3.6V	±30ppm
SSW32768KE3CH-I	HELE加高	HSO321S	32.768kHz	3V~3.6V	±25ppm
SSW024576I3CH	HELE加高	HSO321S	24.576MHz	3V~3.6V	±50ppm
SSW025000I3CH	HELE加高	HSO321S	25MHz	3V~3.6V	±50ppm
SSW016000D3CH	HELE加高	HSO321S	16MHz	3V~3.6V	±20ppm
SSW008000I3CH	HELE加高	HSO321S	8MHz	3V~3.6V	±50ppm
S2H040000F3CHC-T	HELE加高	HSO221S	40MHz	3.3V	±30ppm
