夸克HCMOS时钟振荡器,QTX733B66.0000B15R,物联网6G晶振

频率：66.000MHz

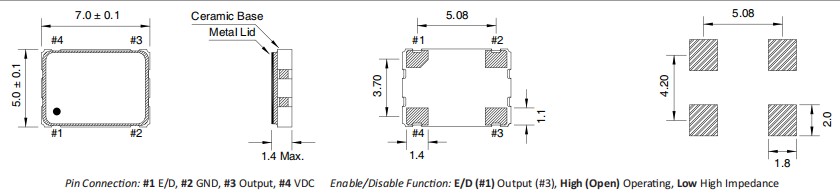

尺寸：7.0x5.0x1.4mm

夸克HCMOS时钟振荡器,QTX733B66.0000B15R,物联网6G晶振，德国进口晶振，Quarztechnik夸克晶振，型号：QTX7，编码为：QTX733B66.0000B15R，频率为：66.000MHz，电压3.3V，工作温度范围：-40℃至+85℃，小体积晶振尺寸：7.0x5.0x1.4mm封装，四脚贴片晶振，石英晶体振荡器，有源晶振，石英晶振，时钟振荡器，无铅环保晶振。QX7振荡器由一个TTL/HCMOS兼容的混合电路和一个微型石英晶体组成，它封装在一个低轮廓的、工业标准的7x5毫米陶瓷封装中。5070晶振应用于：通讯设备，无线网络，蓝牙模块，物联网，GPS定位，车载导航仪，医疗设备，安防设备，平板电脑，数码电子等应用。

订购热线：0755-29952090

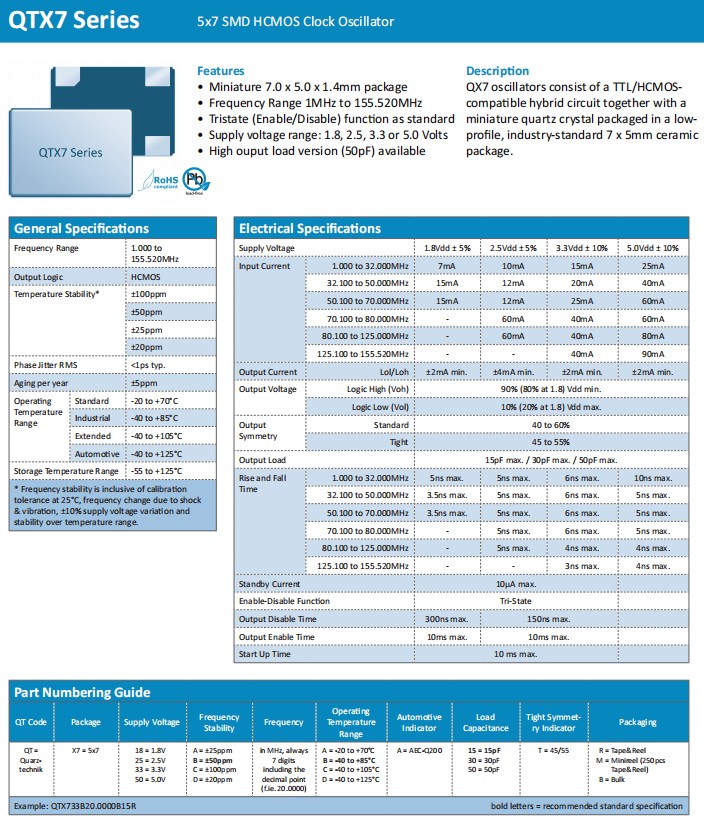

夸克HCMOS时钟振荡器,QTX733B66.0000B15R,物联网6G晶振，参数表

Supply Voltage		1.8Vdd ± 5%	2.5Vdd ± 5%	3.3Vdd ± 10%	5.0Vdd ± 10%
Input Current	1.000 to 32.000MHz	7mA	10mA	15mA	25mA
	32.100 to 50.000MHz	15mA	12mA	20mA	40mA
	50.100 to 70.000MHz	15mA	12mA	25mA	60mA
	70.100 to 80.000MHz	-	60mA	40mA	60mA
	80.100 to 125.000MHz	-	60mA	40mA	80mA
	125.100 to 155.520MHz	-	-	40mA	90mA
Output Current	Lol/Loh	±2mA min.	±4mA min.	±2mA min.	±2mA min.
Output Voltage	Logic High (Voh)	90% (80% at 1.8) Vdd min.
Output Voltage	Logic Low (Vol)	10% (20% at 1.8) Vdd max.
Output	Standard	40 to 60%
Symmetry	Tight	45 to 55%
Output Load		15pF max. / 30pF max. / 50pF max.
Rise and Fall	1.000 to 32.000MHz	5ns max.	5ns max.	6ns max.	10ns max.
Time	32.100 to 50.000MHz	3.5ns max.	5ns max.	6ns max.	5ns max.
	50.100 to 70.000MHz	3.5ns max.	5ns max.	6ns max.	5ns max.
	70.100 to 80.000MHz	-	5ns max.	6ns max.	5ns max.
	80.100 to 125.000MHz	-	5ns max.	4ns max.	4ns max.
	125.100 to 155.520MHz	-	-	3ns max.	4ns max.
Standby Current		10μA max.
Enable-Disable Function		Tri-State
Output Disable Time		300ns max.	150ns max.
Output Enable Time		10ms max.	10ms max.
Start Up Time		10 ms max.
