Silicon晶振,510BBA148M500BAG,5032mm,Si510,148.5MHz
频率：148.500 MHz
尺寸：5.0x3.2mm
Silicon晶振,510BBA148M500BAG,5032mm,Si510,148.5MHz，进口晶振，Silicon晶振，型号：Si510，编码为：510BBA148M500BAG，频率为：148.500 MHz，小体积晶振尺寸：5.0x3.2mm封装，六脚贴片晶振，有源晶振，LVDS差分晶体振荡器，差分晶振，石英晶振，石英晶体振荡器。具有超小型，轻薄型，低抖动，低相位噪声，低功耗，低电压，高精度，高性能，高品质等特点。应用于：通讯设备、机顶盒、光端机、电信、路由器，交换机、仪器仪表、SATA，SAS，光纤通信，千兆以太网，FFPGA/ASIC时钟生成等。
订购热线：0755-29952090
Silicon晶振,510BBA148M500BAG,5032mm,Si510,148.5MHz，进口晶振，Silicon晶振，型号：Si510，编码为：510BBA148M500BAG，频率为：148.500 MHz，小体积晶振尺寸：5.0x3.2mm封装，六脚贴片晶振，有源晶振，LVDS差分晶体振荡器，差分晶振，石英晶振，石英晶体振荡器。具有超小型，轻薄型，低抖动，低相位噪声，低功耗，低电压，高精度，高性能，高品质等特点。应用于：通讯设备、机顶盒、光端机、电信、路由器，交换机、仪器仪表、SATA，SAS，光纤通信，千兆以太网，FFPGA/ASIC时钟生成等。

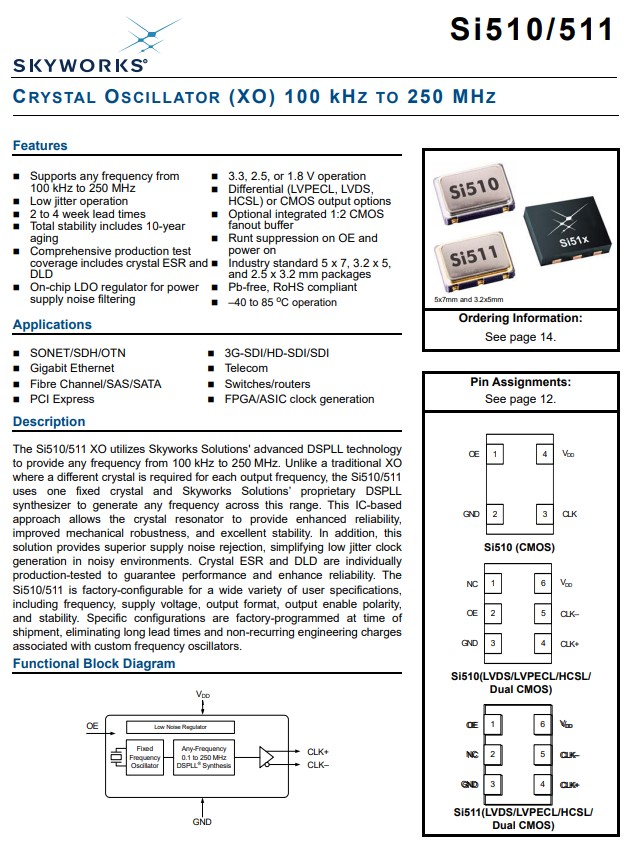

Si510 XO利用天空解决方案的先进DSPLL技术，提供从100 kHz到250 MHz的任何频率。与传统的XO不同，每个输出频率需要不同的晶体，Si510有源晶振使用一个固定晶体和天空解决方案的专有DSPLL合成器来产生这个范围内的任何频率。这种基于集成电路的方法允许晶体谐振器提供增强的可靠性，改进的机械鲁棒性和优异的稳定性。此外，该解决方案提供了优越的电源噪声抑制，简化了在噪声环境下的低抖动时钟产生。水晶ESR和DLD分别进行了生产测试，以保证性能和提高可靠性。Si510可在工厂中进行配置，适合各种用户规格，包括频率、电源电压、输出格式、输出启用极性和稳定性。特定的配置是在装运时由工厂编程的，消除了与定制频率振荡器相关的长交货时间和非重复的工程费用。
Silicon晶振,510BBA148M500BAG,5032mm,Si510,148.5MHz，参数表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | |||||||||||||||||
| Nominal Frequency | FO | CMOS, Dual CMOS | 0.1 | — | 212.5 | MHz | |||||||||||||||||
| FO | LVDS/LVPECL/HCSL |
|
148.5 |
|
MHz | ||||||||||||||||||
| Total Stability* | Frequency Stability Grade C | –30 | — | +30 | ppm | ||||||||||||||||||
| Frequency Stability Grade B | –50 | — | +50 | ppm | |||||||||||||||||||
| Frequency Stability Grade A | –100 | — | +100 | ppm | |||||||||||||||||||
| Temperature Stability | Frequency Stability Grade C | –20 | — | +20 | ppm | ||||||||||||||||||
| Frequency Stability Grade B | –25 | — | +25 | ppm | |||||||||||||||||||
| Frequency Stability Grade A | –50 | — | +50 | ppm | |||||||||||||||||||
| Startup Time | TSU |
Minimum V DD until output frequency (FO) within specification |
— | — | 10 | ms | |||||||||||||||||
| Disable Time | TD | FO> 10 MHz | — | — | 5 | µs | |||||||||||||||||
| FO< 10 MHz | — | — | 40 | µs | |||||||||||||||||||
| Enable Time | TE | FO> 10 MHz | — | — | 20 | µs | |||||||||||||||||
| FO< 10 MHz | — | — | 60 | µs | |||||||||||||||||||
Silicon晶振,510BBA148M500BAG,5032mm,Si510,148.5MHz，尺寸图
Silicon晶振,510BBA148M500BAG,5032mm,Si510,148.5MHz
产品特点：
支持从100 kHz到250 MHz的任何频率
低抖动操作
2-4周交付周期
总体稳定性包括10年老化
全面的生产测试覆盖范围包括晶体ESR和DLD
用于电源噪声滤波的片上LDO稳压器
3.3、2.5或1.8 V操作 石英晶振
差分（LVPECL、LVDS、HCSL）或CMOS输出选项
可选集成1:2 CMOS扇出缓冲器
OE上的Runt抑制和通电
行业标准5 x 7、3.2 x 5和2.5 x 3.2mm封装
无铅，符合RoHS
–40至85℃操作
Si510支持多种选项，包括频率、稳定性、输出格式和VDD。特定的设备配置在装运时被编程到Si510中。可以使用下面的零件号配置图进行配置。Skyworks解决方案提供了一个基于web浏览器的部件号配置实用程序，以简化这个过程。
| 贴片晶振 | 品牌 | 型号 | 频率 | 电压 | 频率稳定度 | 包装/封装 |
| 510BBA156M250BAGR | Silicon晶振 | Si510 | 156.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510BBA125M000BAG | Silicon晶振 | Si510 | 125MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510BBA200M000BAG | Silicon晶振 | Si510 | 200MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510ABA125M000BAG | Silicon晶振 | Si510 | 125MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510BBA156M250BAG | Silicon晶振 | Si510 | 156.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510FBA200M000BAG | Silicon晶振 | Si510 | 200MHz | 2.5V | ±25ppm | 6-SMD, No Lead |
| 510ABA200M000BAG | Silicon晶振 | Si510 | 200MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510FBA125M000BAG | Silicon晶振 | Si510 | 125MHz | 2.5V | ±25ppm | 6-SMD, No Lead |
| 510FBA100M000BAG | Silicon晶振 | Si510 | 100MHz | 2.5V | ±25ppm | 6-SMD, No Lead |
| 510BBA106M250BAG | Silicon晶振 | Si510 | 106.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510FBA148M500BAG | Silicon晶振 | Si510 | 148.5MHz | 2.5V | ±25ppm | 6-SMD, No Lead |
| 510BBA148M500BAG | Silicon晶振 | Si510 | 148.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510ABA000149BAG | Silicon晶振 | Si510 | 74.175824MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510BBA000149BAG | Silicon晶振 | Si510 | 74.175824MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510ABA106M250BAG | Silicon晶振 | Si510 | 106.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510FBA000149BAG | Silicon晶振 | Si510 | 74.175824MHz | 2.5V | ±25ppm | 6-SMD, No Lead |
| 510ABA74M2500BAG | Silicon晶振 | Si510 | 74.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510ABA155M520BAG | Silicon晶振 | Si510 | 155.52MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510FBA155M520BAG | Silicon晶振 | Si510 | 155.52MHz | 2.5V | ±25ppm | 6-SMD, No Lead |
| 510ABA000110BAG | Silicon晶振 | Si510 | 148.35165MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510BBA000110BAG | Silicon晶振 | Si510 | 148.35165MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510FBA000110BAG | Silicon晶振 | Si510 | 148.35165MHz | 2.5V | ±25ppm | 6-SMD, No Lead |
| 510BBA155M520BAG | Silicon晶振 | Si510 | 155.52MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510FBA212M500BAG | Silicon晶振 | Si510 | 212.5MHz | 2.5V | ±25ppm | 6-SMD, No Lead |
| 510ABA212M500BAG | Silicon晶振 | Si510 | 212.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510BCA148M500BAG | Silicon晶振 | Si510 | 148.5MHz | 3.3V | ±20ppm | 6-SMD, No Lead |
| 510BBA74M2500BAG | Silicon晶振 | Si510 | 74.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510BBA100M000BAG | Silicon晶振 | Si510 | 100MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510FBA74M2500BAG | 晶振厂家 | Si510 | 74.25MHz | 2.5V | ±25ppm | 6-SMD, No Lead |
| 510ABA100M000BAG | Silicon晶振 | Si510 | 100MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510ABA148M500BAG | Silicon晶振 | Si510 | 148.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510ABA156M250BAG | Silicon晶振 | Si510 | 156.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510FBA156M250BAG | Silicon晶振 | Si510 | 156.25MHz | 2.5V | ±25ppm | 6-SMD, No Lead |
| 510BBA212M500BAG | Silicon晶振 | Si510 | 212.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510CBA25M0000BAG | Silicon晶振 | Si510 | 25MHz | 3.3V | ±25ppm | 4-SMD, No Lead |
| 510ABA100M000BAGR | Silicon晶振 | Si510 | 100MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510ABA125M000BAGR | Silicon晶振 | Si510 | 125MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510BBA100M000BAGR | Silicon晶振 | Si510 | 100MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510BBA125M000BAGR | Silicon晶振 | Si510 | 125MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510FBA100M000BAGR | Silicon晶振 | Si510 | 100MHz | 2.5V | ±25ppm | 6-SMD, No Lead |
| 510FBA125M000BAGR | Silicon晶振 | Si510 | 125MHz | 2.5V | ±25ppm | 6-SMD, No Lead |
| 510ABA106M250BAGR | Silicon晶振 | Si510 | 106.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510BBA106M250BAGR | Silicon晶振 | Si510 | 106.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510ABA000149BAGR | Silicon晶振 | Si510 | 74.175824MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510ABA74M2500BAGR | Silicon晶振 | Si510 | 74.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510BBA000149BAGR | Silicon晶振 | Si510 | 74.175824MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510BBA74M2500BAGR | Silicon晶振 | Si510 | 74.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510FBA000149BAGR | Silicon晶振 | Si510 | 74.175824MHz | 2.5V | ±25ppm | 6-SMD, No Lead |
| 510FBA74M2500BAGR | Silicon晶振 | Si510 | 74.25MHz | 2.5V | ±25ppm | 6-SMD, No Lead |
| 510ABA156M250BAGR | Silicon晶振 | Si510 | 156.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510FBA156M250BAGR | Silicon晶振 | Si510 | 156.25MHz | 2.5V | ±25ppm | 6-SMD, No Lead |
| 510ABA155M520BAGR | Silicon晶振 | Si510 | 155.52MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510BBA155M520BAGR | Silicon晶振 | Si510 | 155.52MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510FBA155M520BAGR | Silicon晶振 | Si510 | 155.52MHz | 2.5V | ±25ppm | 6-SMD, No Lead |
| 510ABA000110BAGR | Silicon晶振 | Si510 | 148.35165MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510ABA148M500BAGR | Silicon晶振 | Si510 | 148.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510BBA000110BAGR | Silicon晶振 | Si510 | 148.35165MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510BBA148M500BAGR | Silicon晶振 | Si510 | 148.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510FBA000110BAGR | Silicon晶振 | Si510 | 148.35165MHz | 2.5V | ±25ppm | 6-SMD, No Lead |
| 510FBA148M500BAGR | Silicon晶振 | Si510 | 148.5MHz | 2.5V | ±25ppm | 6-SMD, No Lead |
| 510ABA200M000BAGR | Silicon晶振 | Si510 | 200MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510BBA200M000BAGR | Silicon晶振 | Si510 | 200MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510FBA200M000BAGR | Silicon晶振 | Si510 | 200MHz | 2.5V | ±25ppm | 6-SMD, No Lead |
| 510ABA212M500BAGR | Silicon晶振 | Si510 | 212.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510BBA212M500BAGR | Silicon晶振 | Si510 | 212.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510FBA212M500BAGR | Silicon晶振 | Si510 | 212.5MHz | 2.5V | ±25ppm | 6-SMD, No Lead |
| 510BBA150M000BAG | Silicon晶振 | Si510 | 150MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 510KCA100M000BAG | Silicon晶振 | Si510 | 100MHz | 1.8V | ±20ppm | 4-SMD, No Lead |
